Welcome to the Solid State Laser Page

BL8-355Q OEM Laser Head

The BL8-355Q OEM laser system is an advanced diode pumped solid state Q-switched laser system designed specifically for OEM applications. The output characteristics have been optimized for high performance, delivering excellent mode, long term stability, and long lifetime. The laser head is pumped by a 20 W FCbar diode module. This unique and patented pump source is field replaceable, without optical re-alignment of the laser head. The FCbar  diode module is mounted in a J-Series rack mounted power supply. The J-Series and T-Series power supplies are complete packages, including thermal management.

Originally designed as the next generation laser for stereolithography, the BL8-355Q OEM system is field proven with hundreds of units in operations today. The BL8-355Q OEM laser  system is an ideal source for applications requiring long life and exceptional mode quality in the UV wavelength range.

Ordering Information

250-LI-50      110 V, J-Series system, 50mW
250-LI-100      110 V, J-Series system, 100mW
500-LI-400      110 V or 220 V, J-Series system, 400mW
500-LI-800      110 V or 220 V, J-Series system, 800mW

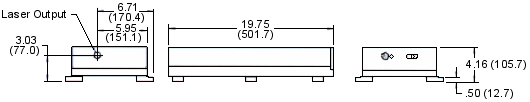

BL8-355Q OEM Laser Head Specifications

Beam Characteristics  1,2

Mode TEM
M 1.3 (typical)
Polarization > 100:1, vertical
Beam diameter (at output) 1 mm diameter 10%
Beam divergence (at output)   < 0.7 mrad, full angle
Beam ellipticity 15%, any two orthogonal axes

 Environmental Characteristics  4

Operating Conditions
Warm-up time <=30 minutes
Temperature range 18C - 35C
Altitude 0 - 3000 meters
Humidity 8 - 95%, non-condensing
Non-operating Conditions
Temperature range -20C - 50C
Altitude 0 - 12,000 meters
Humidity 8 - 95%, non-condensing


Physical Characteristics

Weight (laser head)*

    20.2 kg (45 lbs)

Stability  3

Pulse to pulse energy @ 25kHz 10% rms
Beam pointing angle (far field) 50 urad
Beam pointing angle (near field) within .25 mm diameter circle
Boresight (far field) 2.5 mrad, from design datum
  1. Due to our continuous improvement program, specifications are subject to change without notice.
  2. All specifications at 25kHz unless otherwise specified.
  3. Stability measurements made over 2C dynamic range within specified operating range.
  4. This data applies only to the laser head. Refer to the power supply data sheets for more informations.

Warranty

All  components and assemblies are unconditionally warranted to be free of defects in workmanship and materials for the warranty period, beginning from the date of shipment. This warranty is in lieu of all other warranties, expressed or implied, and does not cover incidental or consequential loss. This warranty does not apply to specified parameters. Modified warranties for OEM customers are available.

Back To Top

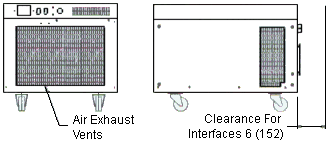

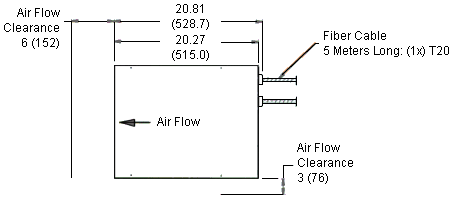

T-Series Power Supplies

The T-series power supply is a complete power supply/thermal management system for all FCbar laser systems. It is designed for high reliability and low maintenance industrial OEM applications. Thermal management is accomplished by means of a closed loop chiller, where the FCbar module(s) is mounted directly on a cold plate, and is "warmed" to its operating temperature by means of a resistive heater. There is no water in the T-Series power supply.

The T-Series controller is microprocessor based. It automatically controls the FCbar module, and can also operate most laser heads in a "constant power" mode. Status and operating parameters are available to the host system.

The Primary interface to the T-Series supply is through a RS-232 port. A TTL/ Analog interface is available on most systems.

Specifications

FCbar Module Information

Bundle configuration Armored
Fiber length 5 Meters
Minimum bend radius (dynamic) 6 inches
Minimum bend radius (static) 4 inches

Environmental & Physical Characteristics  1, 2

Operating Conditions
Boot-up time 5 minutes
Temperature range 18C - 35C
Altitude 0 - 3000 meters
Humidity 8 - 85%, non-condensing
Non-operating Conditions
Temperature range -20C - 50C
Altitude 0 - 12,000 meters
Humidity 8 - 95%, non-condensing
Utilities
Electrical requirements 100-120 VAC, 200-240 VAC
50-60 Hz
Power consumption < 15 Amps, 110 V
800 Watts typical for T20
Cooling Internal fan, 300 cfm


Physical Characteristics

Model Weight

T20

 50 kg (110 lbs.)

  1. Due to our continuous improvement program, specifications are subject to change without notice.
  2. Custom modifications and configurations for specific applications are available. Consult the factory for additional information.

Warranty

The T-Series power supply is covered by a 12 month, 5000 hour warranty. All components and assemblies are unconditionally guaranteed to be free of defects in workmanship and materials for the warranty period, beginning from the date of shipment. This warranty is in lieu of all other warranties, expressed or implied, and does not cover incidental or consequential loss. This does not apply to devices damaged due to operating conditions outside of the specified operating parameters.
